Technology ACT ONE

Product Spec

Shaft Outer Diameter  0.36mm (0.014")
Tip Shape  Straight / Round Curve
Usable Length  200cm / 300cm
Structure

Category #Guidewire #0.014"

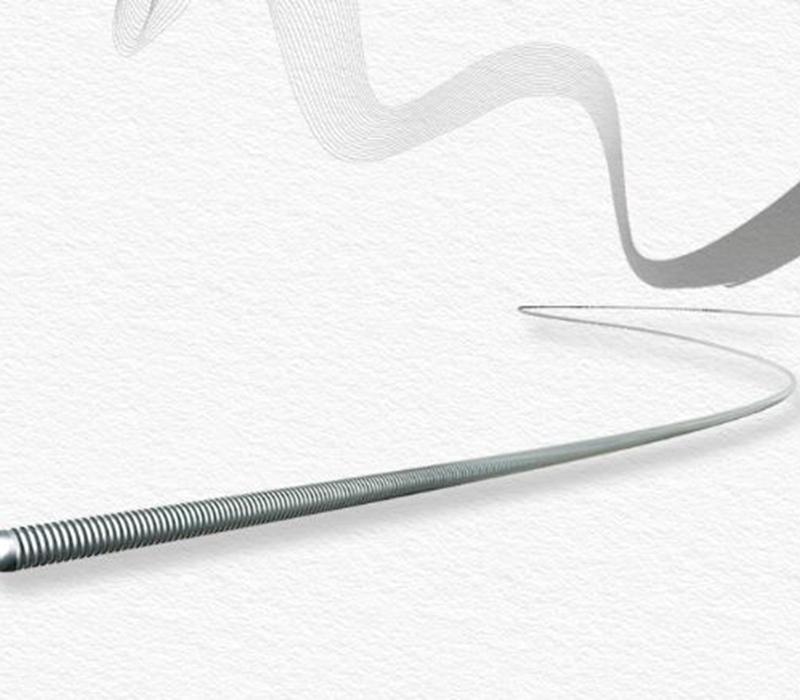

Product Name  ASAHI CHIKAI
Catalog No. WAIN-CKI-200
Usable Length 200cm
Outer Diameter 0.36mm (0.014")
Coil Length 30cm
Radiopaque Length  5cm
Tip Shape Straight
Hydrophilic Coating Length 170cm

Product Name  ASAHI CHIKAI
Catalog No. WAIN-CKI-200-RC
Usable Length 200cm
Outer Diameter 0.36mm (0.014")
Coil Length 30cm
Radiopaque Length  5cm
Tip Shape Round curve
Hydrophilic Coating Length 170cm

Product Name  ASAHI CHIKAI
Catalog No. WAIN-CKI-200-RC
Usable Length 300cm
Outer Diameter 0.36mm (0.014")
Coil Length 30cm
Radiopaque Length  5cm
Tip Shape Straight
Hydrophilic Coating Length 170cm

Product Name  ASAHI CHIKAI
Catalog No. WAIN-CKI-300-RC
Usable Length 300cm
Outer Diameter 0.36mm (0.014")
Coil Length 30cm
Radiopaque Length  5cm
Tip Shape Round curve
Hydrophilic Coating Length 170cm

“ASAHI”, "CHIKAI" and "ACT ONE" are trademarks or registered trademarks of ASAHI INTECC.CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
